madness::FinalizeReducer< T, NDIM > Class Template Reference

Receiving end of the exchange finalize, living in the world the transfer rides on. More...

#include <exchangeoperator.h>

Inheritance diagram for madness::FinalizeReducer< T, NDIM >:

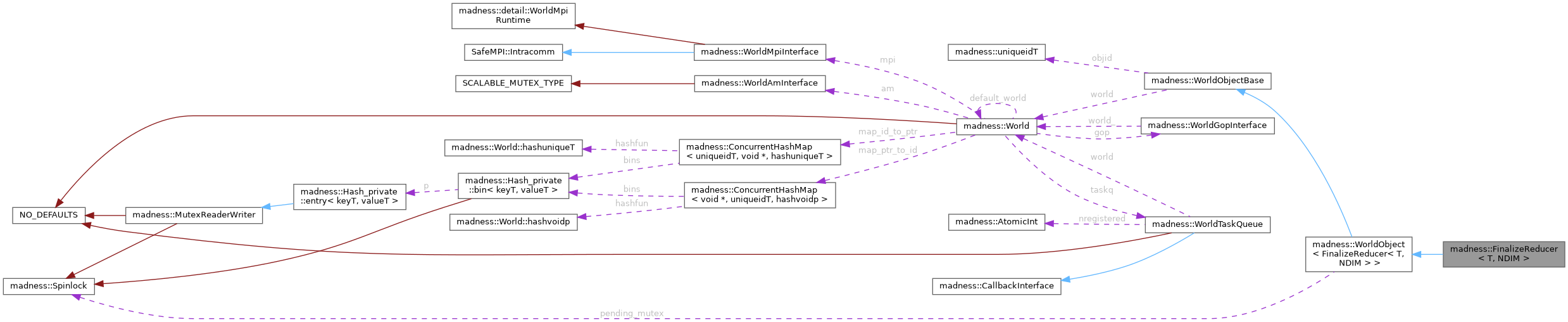

Collaboration diagram for madness::FinalizeReducer< T, NDIM >:

Public Types
typedef FunctionImpl< T, NDIM >	implT
typedef FinalizeNodeRec< T, NDIM >	recT
Public Types inherited from madness::WorldObject< FinalizeReducer< T, NDIM > >
typedef WorldObject< FinalizeReducer< T, NDIM > >	objT

Public Member Functions
	FinalizeReducer (World &world)
void	accumulate_chunk (const std::vector< recT > &recs)
void	set_targets (std::vector< implT * > dests, T beta)
	point at the destinations for the next drain; local, called by every rank
Public Member Functions inherited from madness::WorldObject< FinalizeReducer< T, NDIM > >
	WorldObject (const WorldObject &other)
	WorldObject (World &world)
	Constructor that associates an object (via the derived class) with a globally unique ID.
virtual	~WorldObject ()
WorldObject &	operator= (const WorldObject &)=delete
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const a7T &a7) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const a7T &a7, const a8T &a8) const
detail::task_result_type< memfnT >::futureT	send (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const a7T &a7, const a8T &a8, const a9T &a9) const
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const a7T &a7, const a8T &a8, const a9T &a9, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3,a4,a5,a6,a7,a8,a9).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const a7T &a7, const a8T &a8, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3,a4,a5,a6,a7,a8).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const a7T &a7, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3,a4,a5,a6,a7).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const a6T &a6, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3,a4,a5,a6).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const a5T &a5, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3,a4,a5).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const a4T &a4, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3,a4).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const a3T &a3, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2,a3).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const a2T &a2, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1,a2).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const a1T &a1, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)(a1).
detail::task_result_type< memfnT >::futureT	task (ProcessID dest, memfnT memfn, const TaskAttributes &attr=TaskAttributes()) const
	Sends task to derived class method returnT (this->*memfn)().
Public Member Functions inherited from madness::WorldObjectBase
virtual	~WorldObjectBase ()
World &	get_world () const
World &	get_world_noexcept () const noexcept
	Get the world to which this object belongs, without risking a throw.
const uniqueidT &	id () const
	Returns the globally unique object ID.
bool	world_is_alive () const noexcept
	Reports whether the world to which this object belongs still exists.

Private Attributes
T	beta_ = T(1.0)
std::vector< implT * >	dests_

Additional Inherited Members
Protected Member Functions inherited from madness::WorldObject< FinalizeReducer< T, NDIM > >
void	process_pending ()
	To be called from derived constructor to process pending messages.
Protected Member Functions inherited from madness::WorldObjectBase
	WorldObjectBase (const WorldObjectBase &other)
	Copy constructor; produces an unregistered object.
	WorldObjectBase (World &w)
	Construct a new WorldObjectBase.
World &	get_world_unchecked () const noexcept
	Unchecked access to the memoized world reference.
template<typename DerivedT >
void	register_self (DerivedT *this_ptr)
	Registers this object with its world, making it globally addressable.

Detailed Description

template<typename T, std::size_t NDIM>
class madness::FinalizeReducer< T, NDIM >

Receiving end of the exchange finalize, living in the world the transfer rides on.

Sources push bulk chunks here with task(), so deserializing and accumulating happens on a worker and never on the communication thread. The arithmetic is the same as FunctionNode::gaxpy_inplace; the accessor write lock is what serializes two senders that reach the same key at once.

Member Typedef Documentation

implT

template<typename T , std::size_t NDIM>

typedef FunctionImpl<T, NDIM> madness::FinalizeReducer< T, NDIM >::implT

recT

template<typename T , std::size_t NDIM>

typedef FinalizeNodeRec<T, NDIM> madness::FinalizeReducer< T, NDIM >::recT

Constructor & Destructor Documentation

FinalizeReducer()

template<typename T , std::size_t NDIM>

madness::FinalizeReducer< T, NDIM >::FinalizeReducer ( World &  world )

inlineexplicit

References madness::WorldObject< FinalizeReducer< T, NDIM > >::process_pending().

Member Function Documentation

accumulate_chunk()

template<typename T , std::size_t NDIM>

void madness::FinalizeReducer< T, NDIM >::accumulate_chunk ( const std::vector< recT > &  recs )

inline

References madness::FinalizeReducer< T, NDIM >::beta_, madness::FinalizeReducer< T, NDIM >::dests_, MADNESS_CHECK_THROW, and madness::nonlinear_vector_solver().

set_targets()

template<typename T , std::size_t NDIM>

void madness::FinalizeReducer< T, NDIM >::set_targets ( std::vector< implT * >  dests, T  beta  )

inline

point at the destinations for the next drain; local, called by every rank

References beta, madness::FinalizeReducer< T, NDIM >::beta_, madness::FinalizeReducer< T, NDIM >::dests_, and madness::nonlinear_vector_solver().

Member Data Documentation

beta_

template<typename T , std::size_t NDIM>

T madness::FinalizeReducer< T, NDIM >::beta_ = T(1.0)

private

Referenced by madness::FinalizeReducer< T, NDIM >::accumulate_chunk(), and madness::FinalizeReducer< T, NDIM >::set_targets().

dests_

template<typename T , std::size_t NDIM>

std::vector<implT*> madness::FinalizeReducer< T, NDIM >::dests_

private

Referenced by madness::FinalizeReducer< T, NDIM >::accumulate_chunk(), and madness::FinalizeReducer< T, NDIM >::set_targets().

---

The documentation for this class was generated from the following file:

• exchangeoperator.h
