#include <displacements.h>

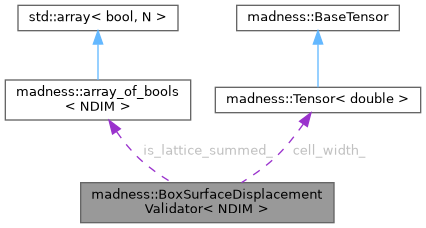

Collaboration diagram for madness::BoxSurfaceDisplacementValidator< NDIM >:

[legend]

Public Types
using	Displacement = Key< NDIM >

using	Periodicity = array_of_bools< NDIM >

using	Point = Key< NDIM >

using	PointPattern = Vector< std::optional< Translation >, NDIM >

using	Reach = StandardDisplacementsReach< NDIM >

Public Member Functions
	BoxSurfaceDisplacementValidator (const array_of_bools< NDIM > &is_infinite_domain, const array_of_bools< NDIM > &is_lattice_summed, std::optional< Reach > reach={})

const array_of_bools< NDIM > &	is_lattice_summed () const

bool	operator() (const Level level, const PointPattern &dest, std::optional< Displacement > &displacement) const
	Apply filter to a displacement ending up at a point or a group of points (point pattern)

const std::optional< Reach > &	reach () const

Private Attributes
Tensor< double >	cell_width_
	reach_->cell_width as a Tensor, for Key::real_distsq_bc

std::array< ExtraDomainPolicy, NDIM >	domain_policies_

array_of_bools< NDIM >	is_lattice_summed_

std::optional< Reach >	reach_

Detailed Description

template<size_t NDIM>
class madness::BoxSurfaceDisplacementValidator< NDIM >

Filters the surface displacements produced by BoxSurfaceDisplacementRange: drops the destinations outside of the domain, maps the destinations along lattice-summed axes into the simulation cell, and drops the displacements already processed as standard (short-range) displacements, as described by StandardDisplacementsReach.

Member Typedef Documentation

◆ Displacement

template<size_t NDIM>

using madness::BoxSurfaceDisplacementValidator< NDIM >::Displacement = Key<NDIM>

◆ Periodicity

template<size_t NDIM>

using madness::BoxSurfaceDisplacementValidator< NDIM >::Periodicity = array_of_bools<NDIM>

◆ Point

template<size_t NDIM>

using madness::BoxSurfaceDisplacementValidator< NDIM >::Point = Key<NDIM>

◆ PointPattern

template<size_t NDIM>

using madness::BoxSurfaceDisplacementValidator< NDIM >::PointPattern = Vector<std::optional<Translation>, NDIM>

◆ Reach

template<size_t NDIM>

using madness::BoxSurfaceDisplacementValidator< NDIM >::Reach = StandardDisplacementsReach<NDIM>

Constructor & Destructor Documentation

◆ BoxSurfaceDisplacementValidator()

template<size_t NDIM>

madness::BoxSurfaceDisplacementValidator< NDIM >::BoxSurfaceDisplacementValidator	(	const array_of_bools< NDIM > &	is_infinite_domain,
		const array_of_bools< NDIM > &	is_lattice_summed,
		std::optional< Reach >	reach = `{}`
	)

inline

Parameters

is_infinite_domain	whether the domain along each axis is finite (simulation cell) or infinite (the entire axis); if true for a given axis then any destination coordinate is valid, else only values in [0,2^n) are valid
is_lattice_summed	if true for a given axis, displacement to x and x+2^n are equivalent, hence will be canonicalized to end up in the simulation cell. Periodic axes imply infinite domain, whatever was passed to `is_infinite_domain`.
reach	the real-space extent of the standard displacements that have been processed; surface displacements within it are filtered out as duplicates. Omit if no standard displacements have been processed (nothing is filtered on that account).

Member Function Documentation

◆ is_lattice_summed()

template<size_t NDIM>

const array_of_bools< NDIM > & madness::BoxSurfaceDisplacementValidator< NDIM >::is_lattice_summed ( ) const

inline

Returns: which axes are lattice summed

References madness::BoxSurfaceDisplacementValidator< NDIM >::is_lattice_summed_.

◆ operator()()

template<size_t NDIM>

bool madness::BoxSurfaceDisplacementValidator< NDIM >::operator()	(	const Level	level,
		const PointPattern &	dest,
		std::optional< Displacement > &	displacement
	)		const

inline

Apply filter to a displacement ending up at a point or a group of points (point pattern)

Parameters

level	the tree level
dest	the target point (when all elements are nonnull) or point pattern (when only some are). The latter is useful to skip the entire surface layer. The point coordinates are only used to determine whether we end up in or out of the domain.
displacement	the optional displacement; if given then will check if it's among the standard displacement and whether it was used as part of the standard displacement set; if it has not been used and the operator is lattice summed, the displacement will be adjusted to end up in the simulation cell. Primary use case for omitting `displacement` is if `dest` is not equivalent to a point.
